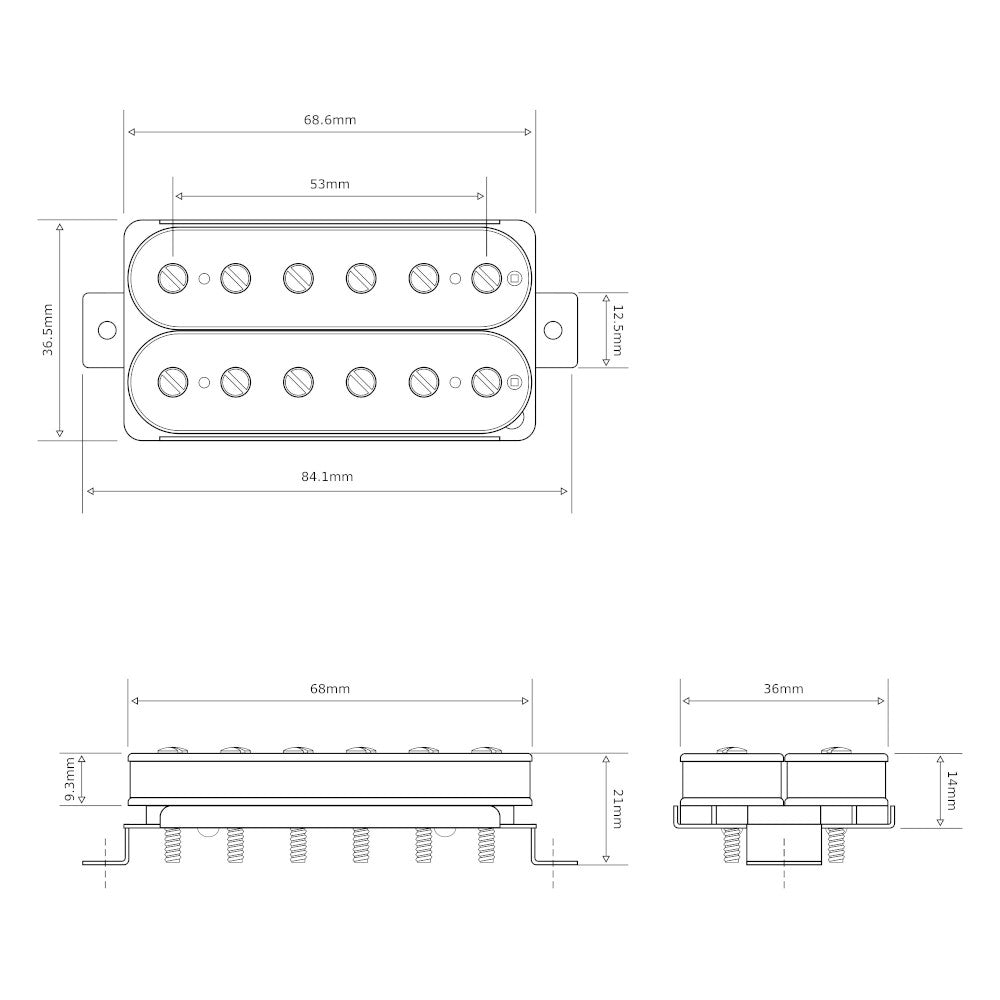

POLE SPACING: 53mm
DC RESISTANCE SINGLE COIL: 6.8 kΩ
DC RESISTANCE HUMBUCKER MODE: 13.6 kΩ
INDUCTANCE SINGLE COIL: 3.9 Henries
INDUCTANCE HUMBUCKER MODE: 9.4 Henries
COIL WIRE: 43-AWG Enamel
WINDING: Scatter Wound
POTTED: Yes - 20% Bee Wax/80% Paraffin Wax
POLE PIECES: Vintage PAF Fillister Screws Nickel Plated
BASEPLATE: Short Leg (1/4") Nickel Plated
MOUNTING SCREWS AND SPRINGS: Included (30mm)
HOOK-UP WIRE: Shielded 4-conductor Wire (240mm)
* DC Resistance and inductance can differ within 5%.
** For series wiring, connect WHITE and GREEN wires.
