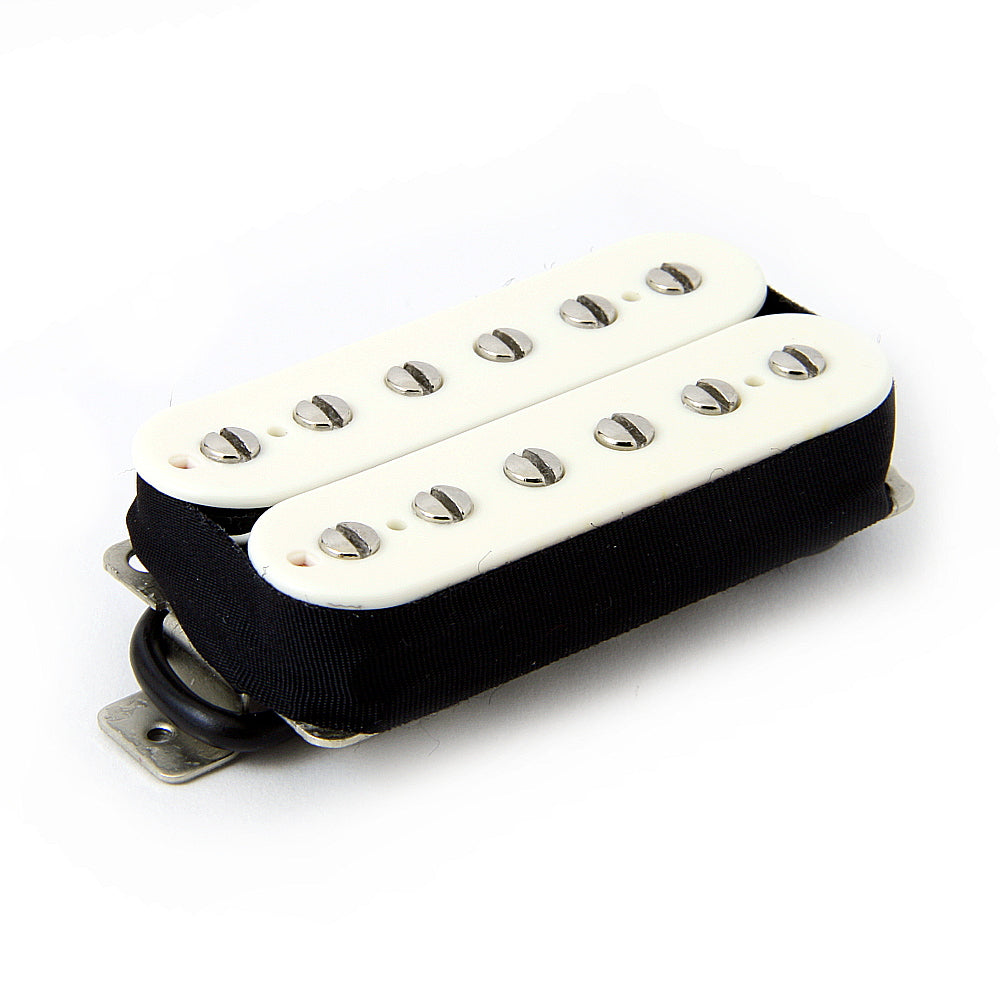

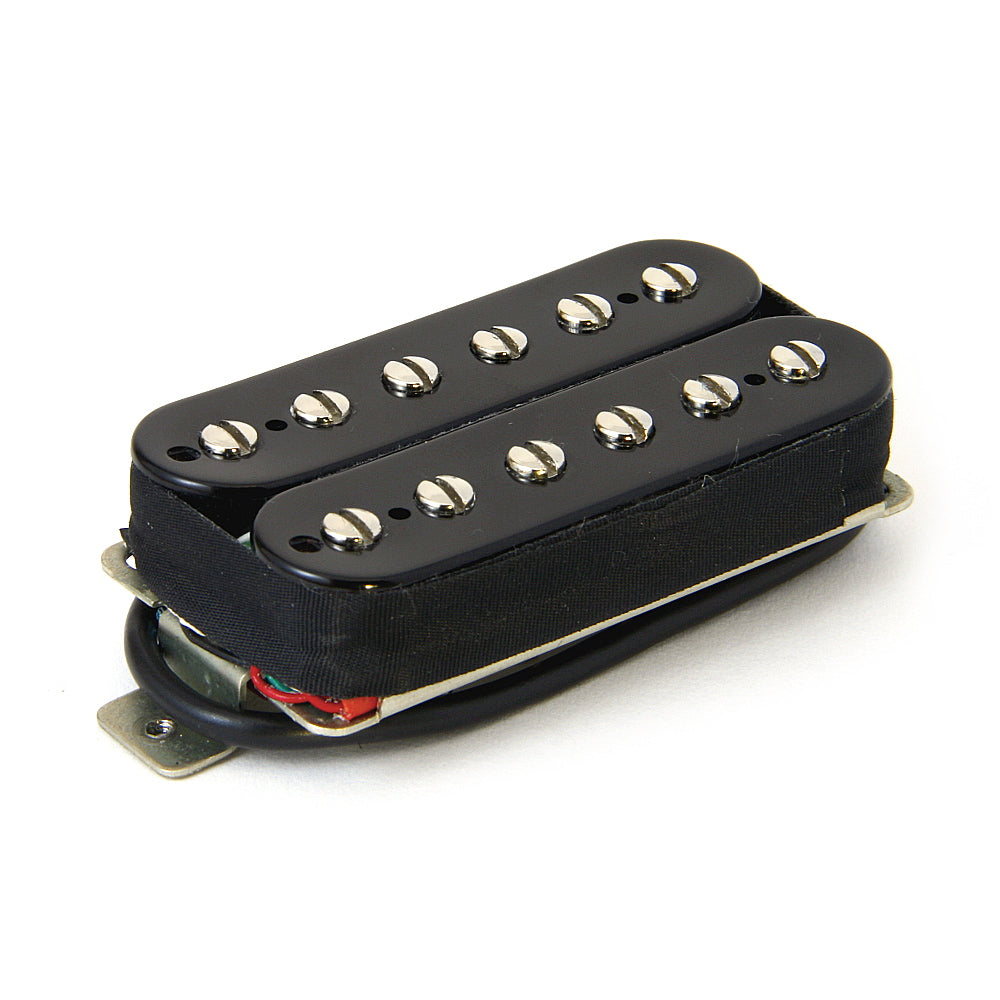

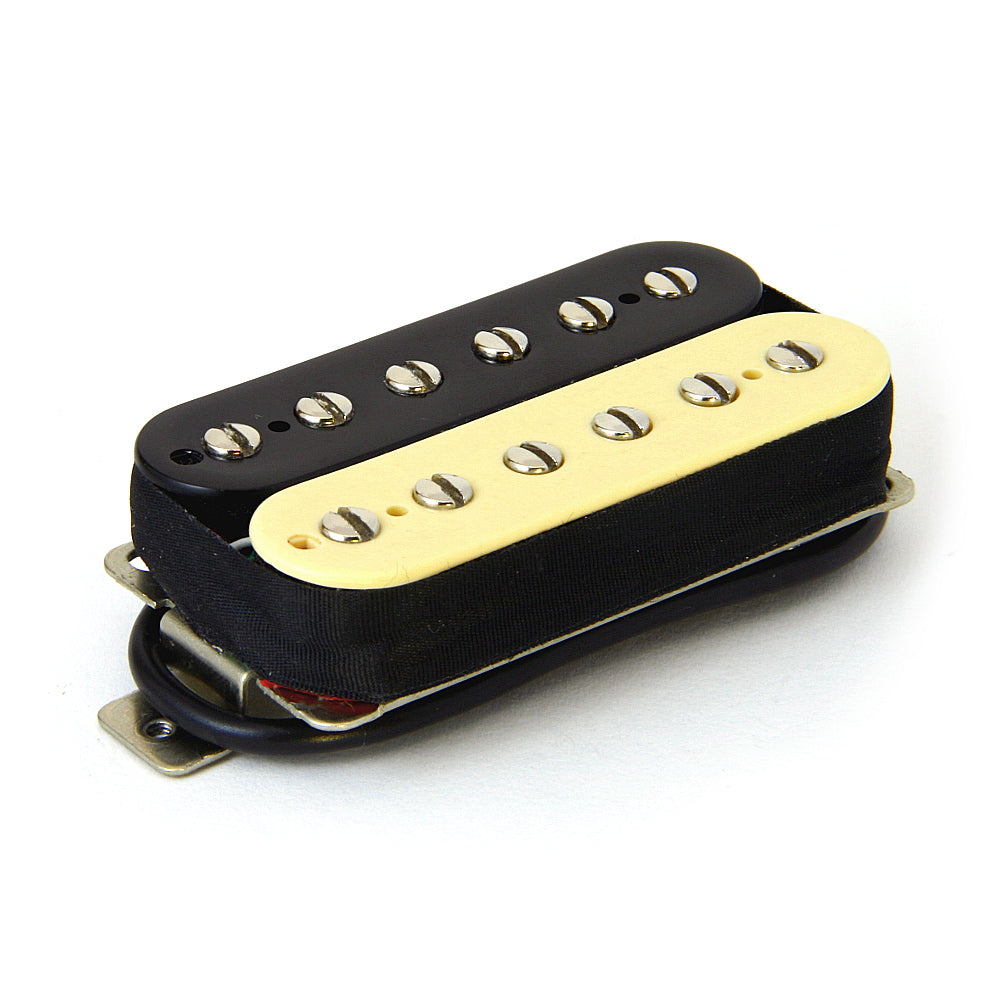

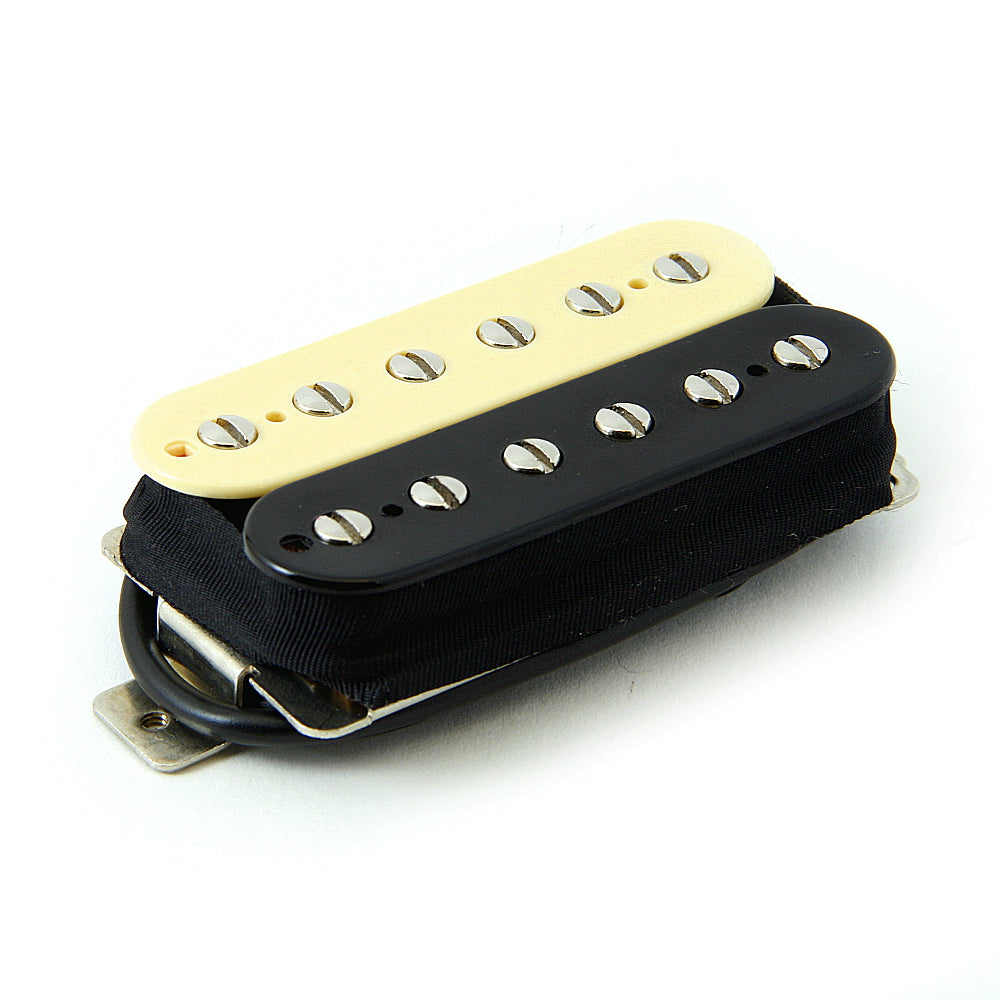

Stapleton Pickups™ high output, split coil pickup, supporting single coil or humbucker mode. Output and frequencies of this pickup in the single coil mode is similar to single coil pickups. Screw pole-pieces allow to adjust pickup’s height for every single string — that enables you to precisely customise the tone of your guitar.
Specification

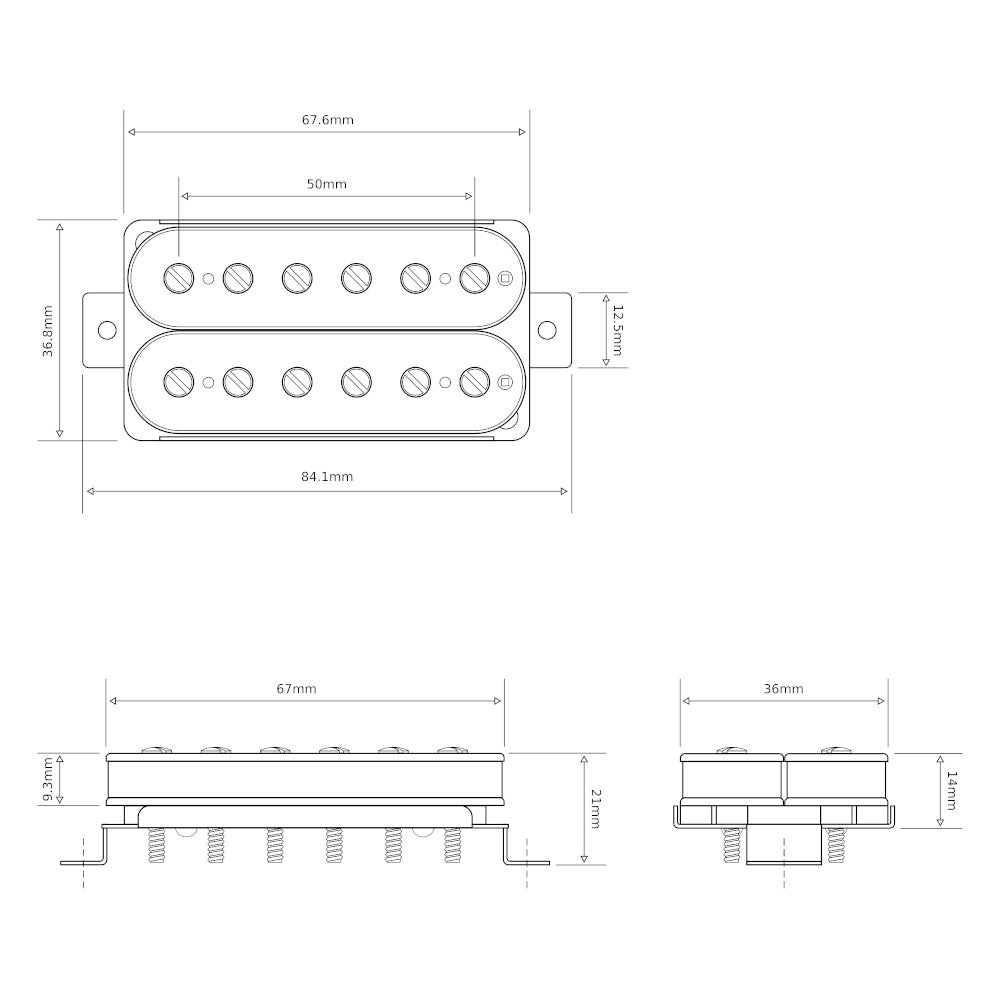

POLE SPACING: 50mm
DC RESISTANCE SINGLE COIL: 6.0 kΩ
DC RESISTANCE HUMBUCKER MODE: 12.0 kΩ
INDUCTANCE SINGLE COIL: 3.4 Henries
INDUCTANCE HUMBUCKER MODE: 7.9 Henries
COIL WIRE: 43-AWG Enamel
WINDING: Scatter Wound
POTTED: Yes - 20% Bee Wax/80% Paraffin Wax
POLE PIECES: Vintage PAF Fillister Screws Nickel Plated

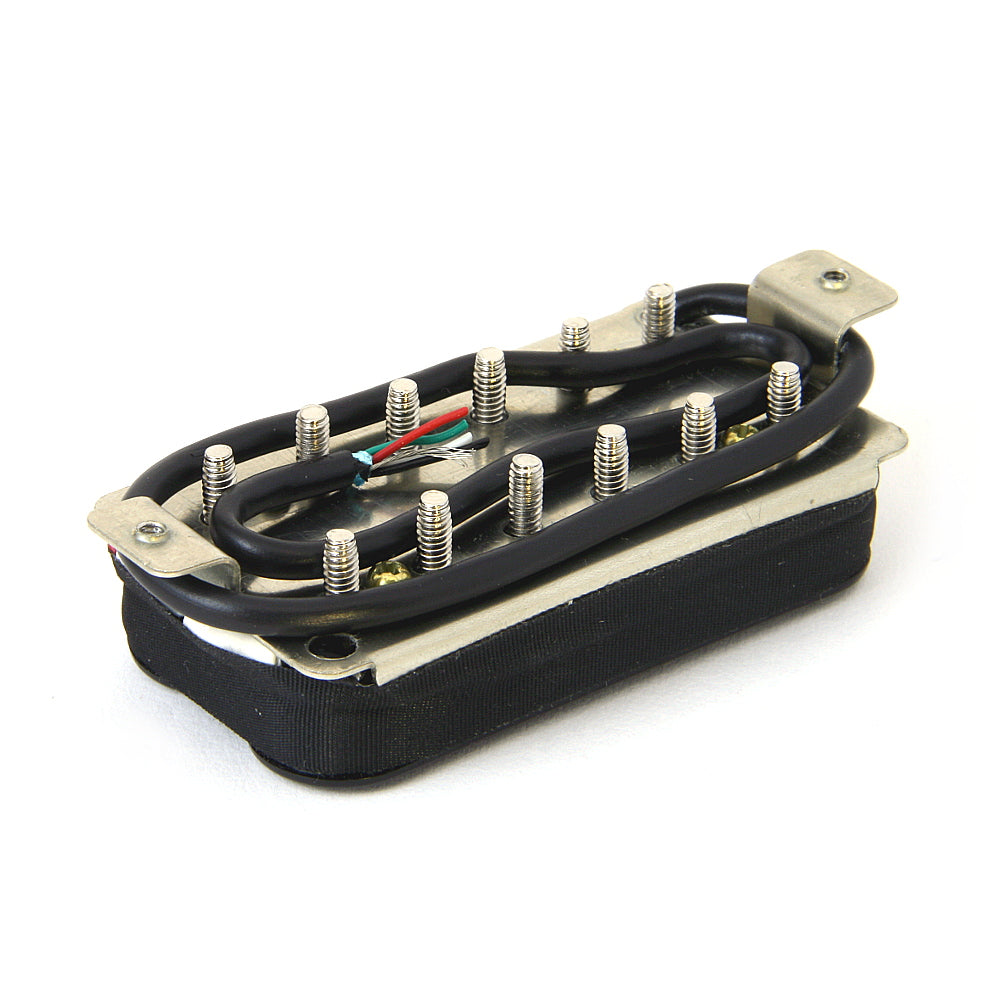

BASEPLATE: Short Leg (1/4") Nickel Plated

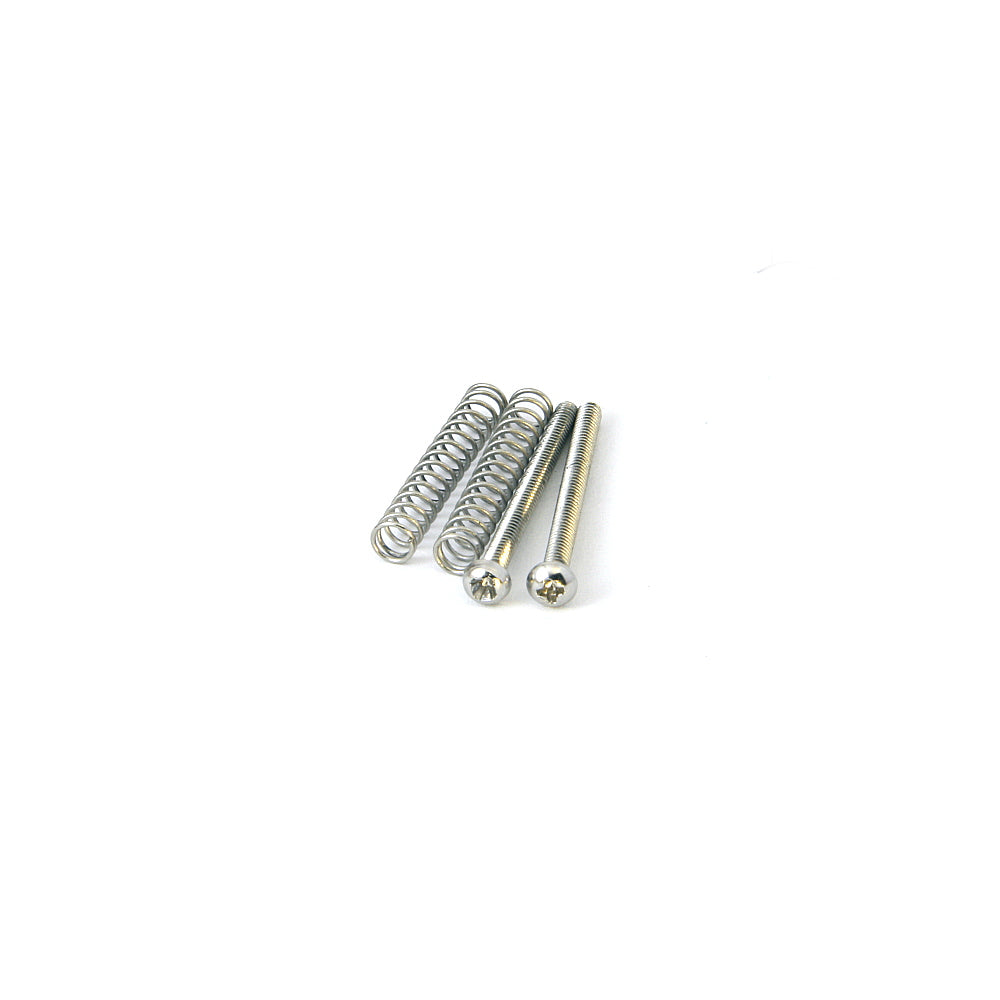

MOUNTING SCREWS AND SPRINGS: Included (30mm)
HOOK-UP WIRE: Shielded 4-conductor Wire (280mm)
* DC Resistance and inductance can differ within 5%.

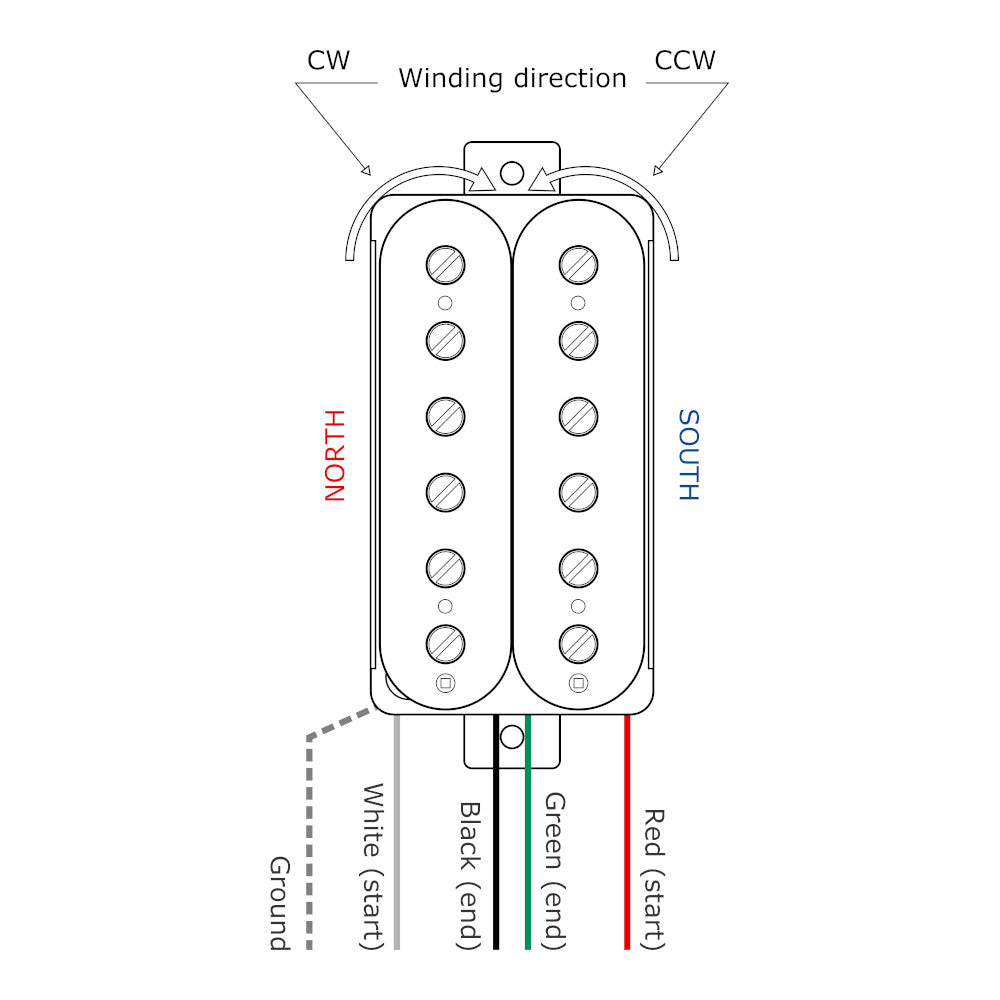

** For series wiring, connect WHITE and GREEN wires.
