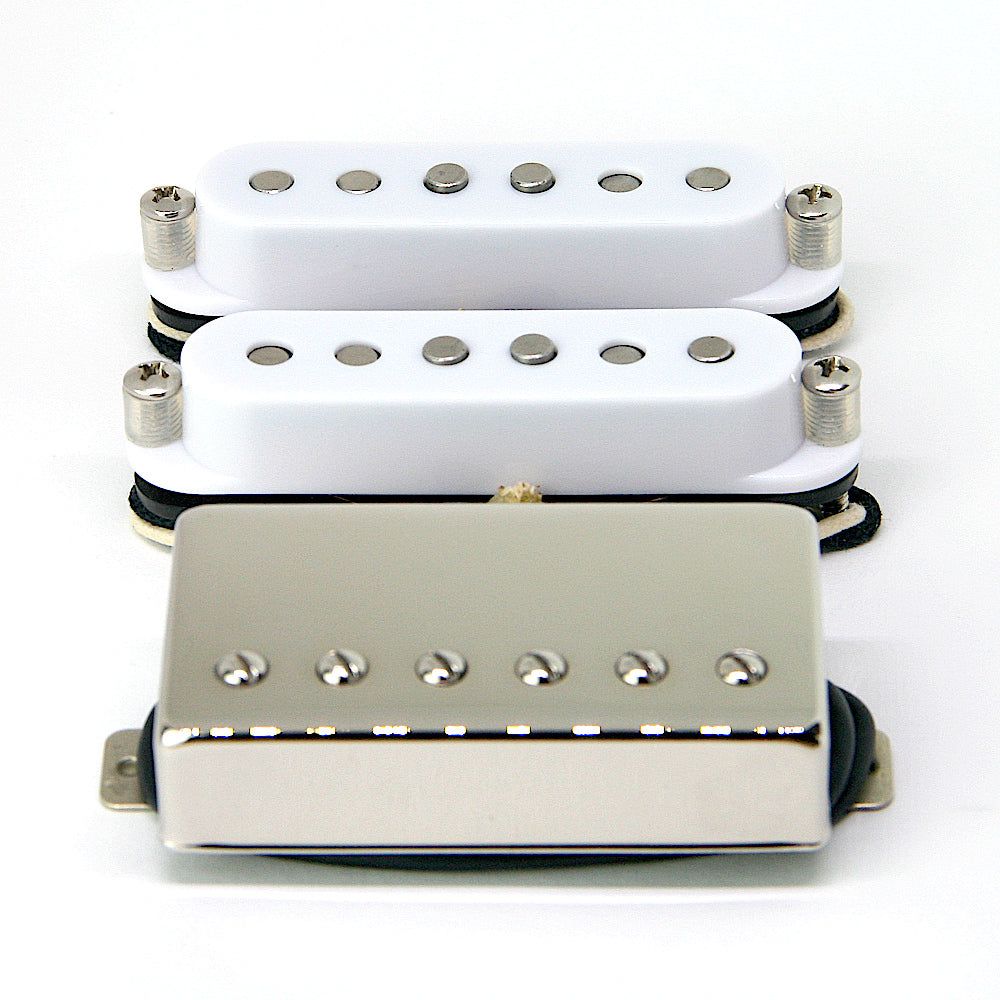

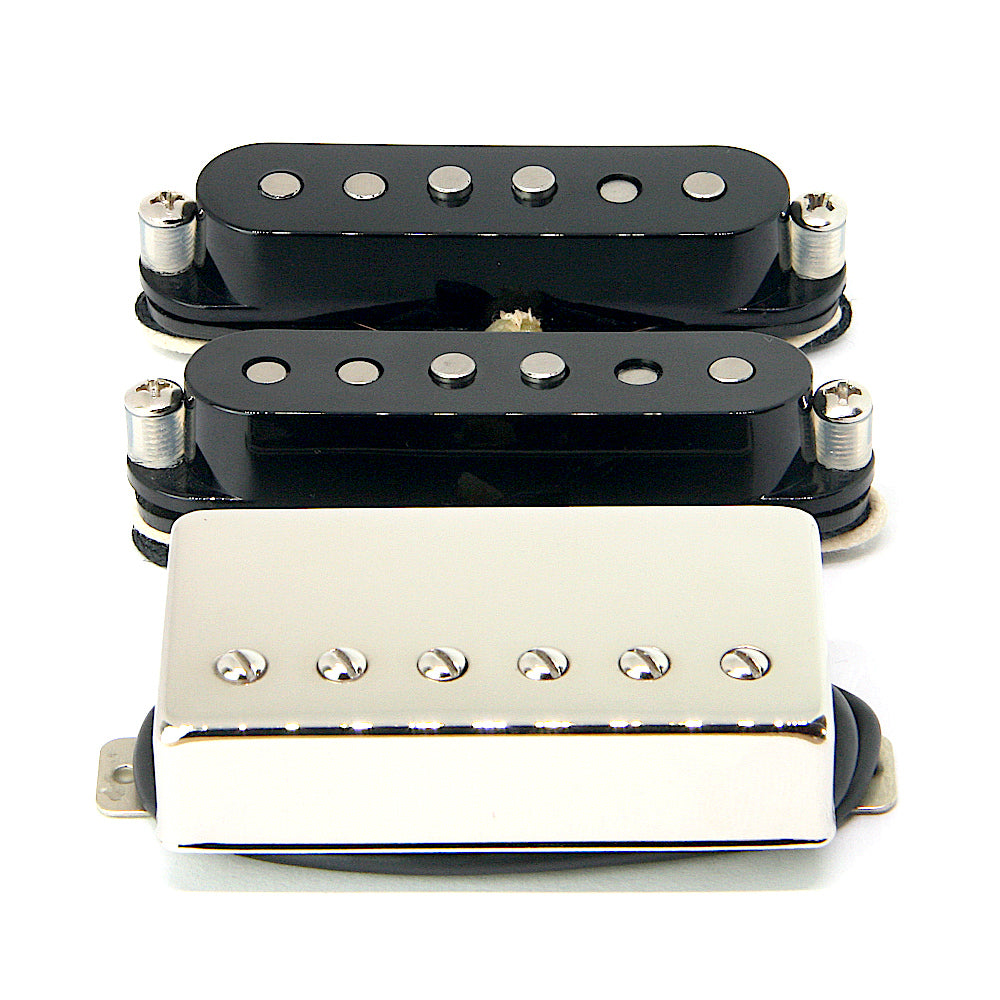

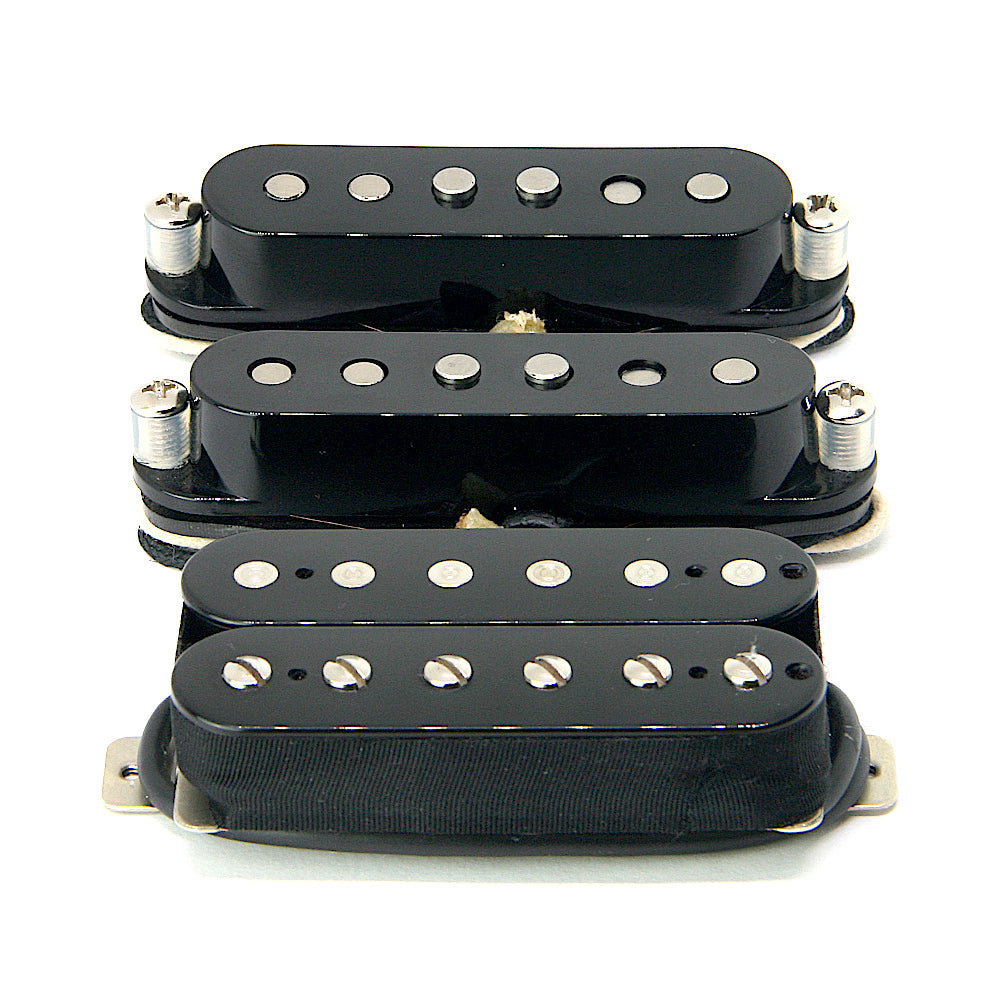

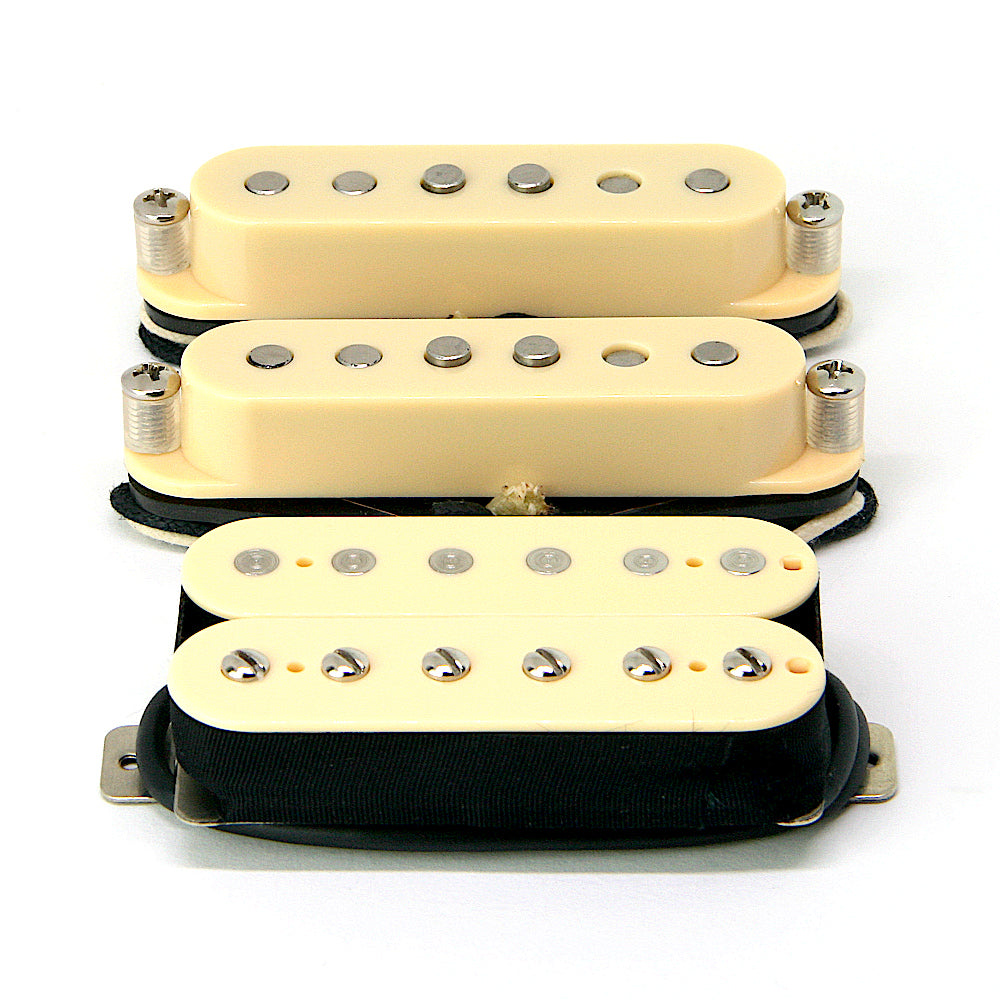

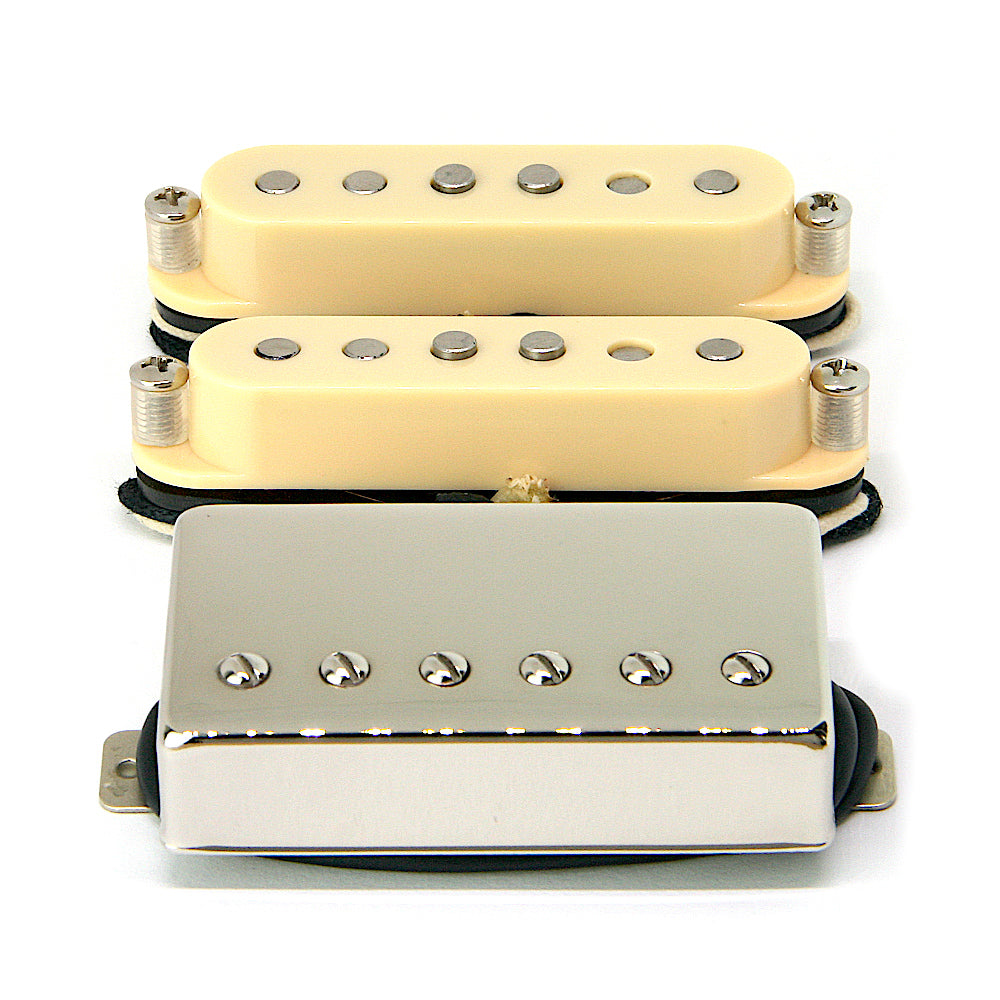

Regular Output HSS Pickup Set

Specification

• Single Coil Neck pickup resistance: 5.9 kΩ
• Single Coil Middle pickup resistance: 6.3 kΩ
• Humbucker Low Output bridge pickup resistance: 8.6 kΩ
• Single Coil Neck pickup inductance: 3.3 Henries
• Single Coil Middle pickup inductance: 3.7 Henries
• Humbucker Low Output bridge pickup inductance: 6.4 Henries
• Neck pickups pole spacing: 50mm
• Middle pickup pole spacing: 52mm
• Bridge pickup pole spacing: 53mm
• Coil wire: 42-AWG Enamel
• Winding: Scatter Wound
• Potted: Yes - 20% Bee Wax/80% Paraffin Wax
• Single Coil pickup Mounting Screws and Springs: Nickel plated screws and silicone tubing
• Humbucker pickup mounting screws and springs: Included (30mm)
• Single Coil pickup Hook-Up wire: 25cm pushback cloth wire
• Humbucker pickup Hook-Up wire: Shielded 4-conductor Wire (240mm)

* DC Resistance and inductance can differ within 5%.

** For humbucker series wiring, connect WHITE and GREEN wires.
