Tapped humbucker bridge pickup

Specification

• POLE SPACING: 52mm
• DC RESISTANCE: 8.4/11.0 kΩ
• COIL WIRE: 43-AWG
• WINDING: Scatter Wound
• POTTED: Yes - 20% Bee Wax/80% Paraffin Wax
• POLE PIECES: Vintage PAF Fillister Screws Nickel Plated
• BASEPLATE: Short Leg (1/4") Nickel Plated

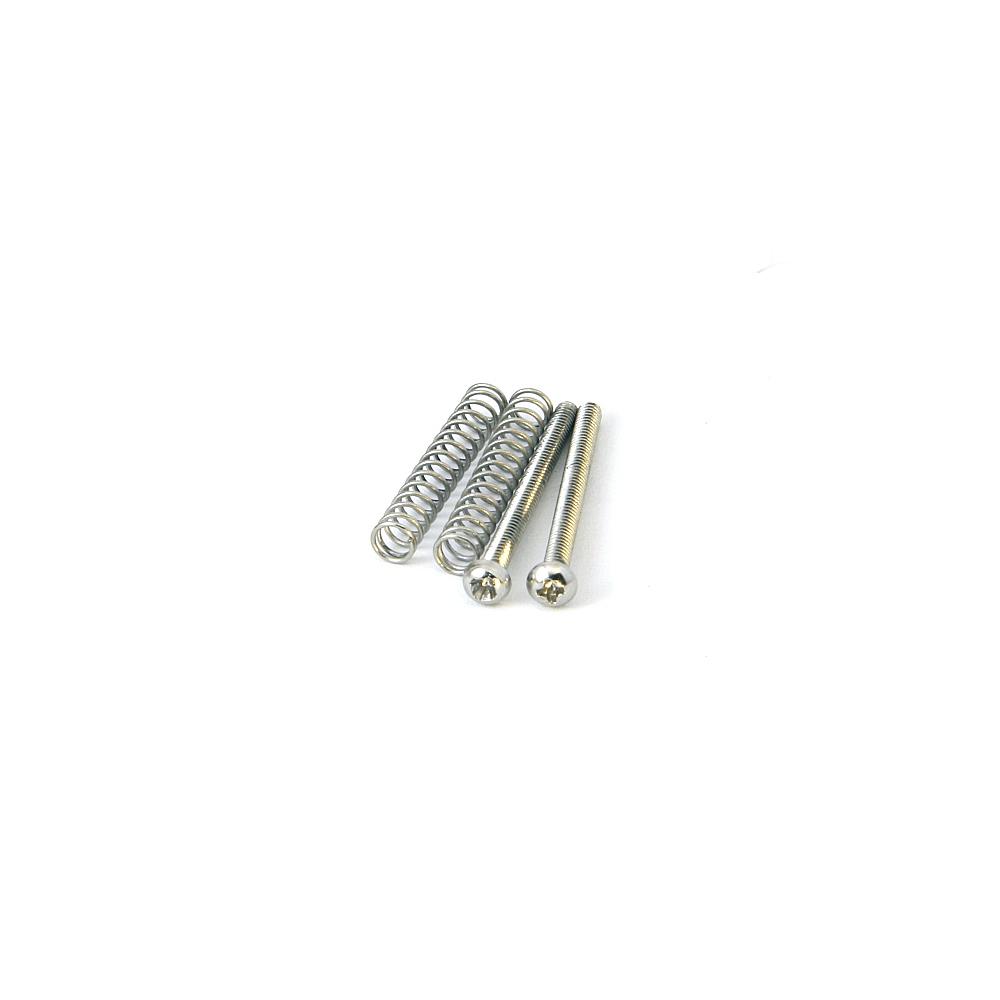

• MOUNTING SCREWS AND SPRINGS: Included (30mm)
• HOOK-UP WIRE: Shielded 4-conductor Wire (240mm)

* DC Resistance and inductance can differ within 5%.

** For series wiring, connect WHITE and GREEN wires.
